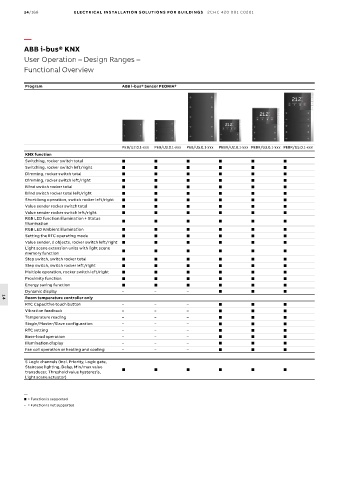

14/168 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Program ABB i-bus® Sensor PEONIA®

PEB/U2.0.1-xxx PEB/U3.0.1-xxx PEB/U5.0.1-xxx PEBR/U2.0.1-xxx PEBR/U3.0.1-xxx PEBR/U5.0.1-xxx
KNX function
Switching, rocker switch total ■ ■ ■ ■ ■ ■
Switching, rocker switch left/right ■ ■ ■ ■ ■ ■
Dimming, rocker switch total ■ ■ ■ ■ ■ ■
Dimming, rocker switch left/right ■ ■ ■ ■ ■ ■
Blind switch rocker total ■ ■ ■ ■ ■ ■
Blind switch rocker total left/right ■ ■ ■ ■ ■ ■
Short-long operation, switch rocker left/right ■ ■ ■ ■ ■ ■
Value sender rocker switch total ■ ■ ■ ■ ■ ■
Value sender rocker switch left/right ■ ■ ■ ■ ■ ■
RGB LED function illumination + Status
illumination ■ ■ ■ ■ ■ ■
RGB LED Ambient illumination ■ ■ ■ ■ ■ ■
Setting the RTC operating mode ■ ■ ■ ■ ■ ■
Value sender, 2 objects, rocker switch left/right ■ ■ ■ ■ ■ ■
Light scene extension units with light scene
memory function ■ ■ ■ ■ ■ ■
Step switch, switch rocker total ■ ■ ■ ■ ■ ■
Step switch, switch rocker left/right ■ ■ ■ ■ ■ ■
Multiple operation, rocker switch left/right ■ ■ ■ ■ ■ ■
Proximity function ■ ■ ■ ■ ■ ■
Energy saving function ■ ■ ■ ■ ■ ■
Dynamic display – – – ■ ■ ■
Room temperature controller only
14
RTC Capacitive touch button – – – ■ ■ ■
Vibration feedback – – – ■ ■ ■
Temperature reading – – – ■ ■ ■
Single/Master/Slave configuration – – – ■ ■ ■
RTC setting – – – ■ ■ ■
Base-load operation – – – ■ ■ ■
Illumination display – – – ■ ■ ■
Fan coil operation or heating and cooling – – – ■ ■ ■

5 Logic channels (incl. Priority, Logic gate,
Staircase lighting, Delay, Min/max value
transducer, Threshold value hysteresis, ■ ■ ■ ■ ■ ■
Light scene actuator)

—
 = Function is supported
– = Function is not supported
