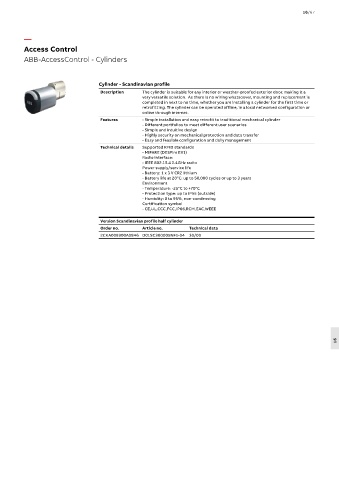

Access Control
ABB-AccessControl - Cylinders

Cylinder - Scandinavian profile
Description The cylinder is suitable for any interior or weather-proofed exterior door, making it a
very versatile solution. As there is no wiring whatsoever, mounting and replacement is
completed in next to no time, whether you are installing a cylinder for the first time or
retrofitting. The cylinder can be operated offline, in a local networked configuration or
online through internet.
Features - Simple installation and easy retrofit to traditional mechanical cylinder
- Different portfolios to meet different user scenarios
- Simple and intuitive design
- Highly security on mechanical protection and data transfer
- Easy and feasible configuration and daily management
Technical details Supported RFID standards
- MIFARE (DESFire EV1)
Radio interface:
- IEEE 802.15.4 2.4GHz radio
Power supply/service life
- Battery: 1 x 3 V CR2 lithium
- Battery life at 20°C: up to 50,000 cycles or up to 3 years
Environment
- Temperature: -25°C to +70°C
- Protection type: up to IP55 (outside)
- Humidity: 0 to 95%, non-condensing
Certification symbol
- CE,UL,CCC,FCC,IP66,RCM,EAC,WEEE

Version Scandinavian profile half cylinder
Order no. Article no. Technical data
2CKA008300A0846 D01SC300005NF1-04 30/00
