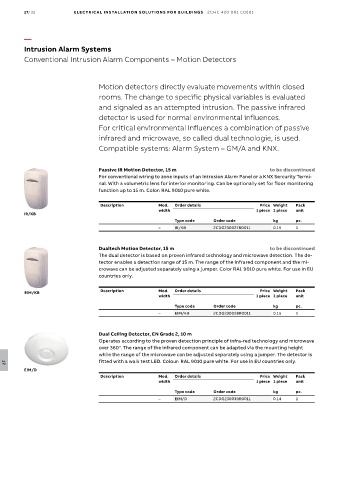

17/32 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Intrusion Alarm Systems
Conventional Intrusion Alarm Components – Motion Detectors

Motion detectors directly evaluate movements within closed
rooms. The change to specific physical variables is evaluated

and signaled as an attempted intrusion. The passive infrared
detector is used for normal environmental influences.
For critical environmental influences a combination of passive
infrared and microwave, so called dual technologie, is used.

Compatible systems: Alarm System – GM/A and KNX.

Passive IR Motion Detector, 15 m to be discontinued
For conventional wiring to zone inputs of an Intrusion Alarm Panel or a KNX Sercurity Termi-
nal. With a volumetric lens for interior monitoring. Can be optionally set for floor monitoring
function up to 15 m. Color: RAL 9010 pure white.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
IR/KB
Type code Order code kg pc.
– IR/KB 2CDG230027R0011 0.15 1

Dualtech Motion Detector, 15 m to be discontinued
The dual detector is based on proven infrared technology and microwave detection. The de-
tector enables a detection range of 15 m. The range of the infrared component and the mi-
crowave can be adjusted separately using a jumper. Color RAL 9010 pure white. For use in EU
countries only.

Description Mod. Order details Price Weight Pack
EIM/KB
width 1 piece 1 piece unit
Type code Order code kg pc.
– EIM/KB 2CDG230028R0011 0.15 1

Dual Ceiling Detector, EN Grade 2, 10 m
Operates according to the proven detection principle of infra-red technology and microwave
over 360°. The range of the infrared component can be adapted via the mounting height
while the range of the microwave can be adjusted separately using a jumper. The detector is
fitted with a walk test LED. Colour: RAL 9010 pure white. For use in EU countries only.
17
EIM/D
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– EIM/D 2CDG230039R0011 0.14 1
