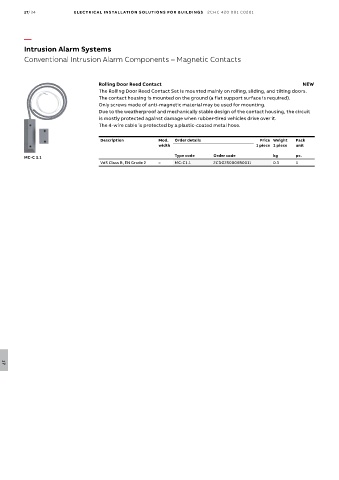

Page 2316 - Din prodcuts 2020
P. 2316
17/34 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Intrusion Alarm Systems
Conventional Intrusion Alarm Components – Magnetic Contacts
Rolling Door Reed Contact NEW
The Rolling Door Reed Contact Set is mounted mainly on rolling, sliding, and tilting doors.
The contact housing is mounted on the ground (a flat support surface is required).
Only screws made of anti-magnetic material may be used for mounting.
Due to the weatherproof and mechanically stable design of the contact housing, the circuit
is mostly protected against damage when rubber-tired vehicles drive over it.
The 4-wire cable is protected by a plastic-coated metal hose.
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
MC-C 1.1
VdS Class B, EN Grade 2 – MC-C1.1 2CDG250006R0011 0.3 1
