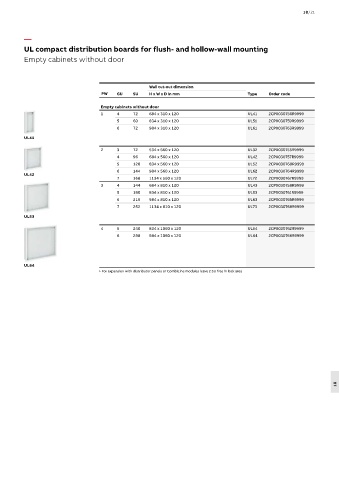

UL compact distribution boards for flush- and hollow-wall mounting
Empty cabinets without door

Wall cut-out dimension
PW GU SU H x W x D in mm Type Order code

Empty cabinets without door
1 4 72 684 x 310 x 120 UL41 2CPX030756R9999
5 60 834 x 310 x 120 UL51 2CPX030759R9999
6 72 984 x 310 x 120 UL61 2CPX030763R9999
UL41
2 3 72 534 x 560 x 120 UL32 2CPX030755R9999
4 96 684 x 560 x 120 UL42 2CPX030757R9999
5 120 834 x 560 x 120 UL52 2CPX030760R9999
6 144 984 x 560 x 120 UL62 2CPX030764R9999
UL42
7 168 1134 x 560 x 120 UL72 2CPX030767R9999
3 4 144 684 x 810 x 120 UL43 2CPX030758R9999
5 180 834 x 810 x 120 UL53 2CPX030761R9999
6 216 984 x 810 x 120 UL63 2CPX030765R9999
7 252 1134 x 810 x 120 UL73 2CPX030768R9999
UL53

4 5 240 834 x 1060 x 120 UL54 2CPX030762R9999
6 288 984 x 1060 x 120 UL64 2CPX030766R9999

UL64
> For expansion with distributor panels or CombiLine modules leave 2 SU free in lock area
