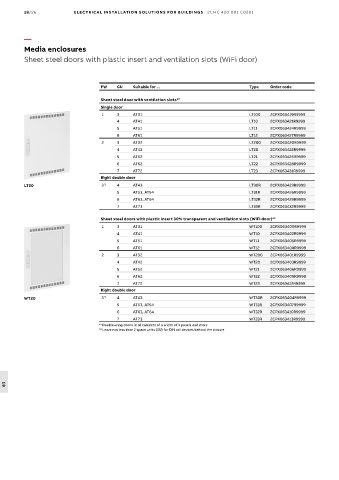

18/26 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Media enclosures
Sheet steel doors with plastic insert and ventilation slots (WiFi door)

PW GU Suitable for ... Type Order code

Sheet steel door with ventilation slots* 2
Single door
1 3 AT31 LT100 2CPX063419R9999
4 AT41 LT10 2CPX063421R9999
5 AT51 LT11 2CPX063424R9999
6 AT61 LT12 2CPX063427R9999
2 3 AT32 LT200 2CPX063420R9999
4 AT42 LT20 2CPX063422R9999
5 AT52 LT21 2CPX063425R9999
6 AT62 LT22 2CPX063428R9999
7 AT72 LT23 2CPX063431R9999
Right double door
LT20 3 *1 4 AT43 LT30R 2CPX063423R9999
5 AT53, AT54 LT31R 2CPX063426R9999
6 AT63, AT64 LT32R 2CPX063429R9999
7 AT73 LT33R 2CPX063432R9999
Sheet steel doors with plastic insert 30% transparent and ventilation slots (WiFi door)* 2
1 3 AT31 WT100 2CPX063400R9999
4 AT41 WT10 2CPX063402R9999
5 AT51 WT11 2CPX063405R9999
6 AT61 WT12 2CPX063408R9999
2 3 AT32 WT200 2CPX063401R9999
4 AT42 WT20 2CPX063403R9999
5 AT52 WT21 2CPX063406R9999
6 AT62 WT22 2CPX063409R9999
7 AT72 WT23 2CPX063412R9999
Right double door
WT20 3 *1 4 AT43 WT30R 2CPX063404R9999
5 AT53, AT54 WT31R 2CPX063407R9999
6 AT63, AT64 WT32R 2CPX063410R9999
7 AT73 WT33R 2CPX063413R9999
* 1 Double-wing doors in all cabinets of a width of 3 panels and more
* 2 Leave not less than 2 space units (SU) for DIN rail devices behind the closure
