18/24 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

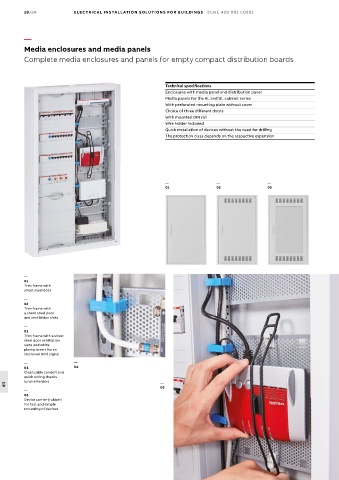

Media enclosures and media panels
Complete media enclosures and panels for empty compact distribution boards

Technical specifications
Enclosures with media panel and distribution panel
Media panels for the AL and UL cabinet series
With perforated mounting plate without cover
Choice of three different doors
With mounted DIN rail
Wire holder included
Quick installation of devices without the need for drilling
The protection class depends on the respective expansion

— — —
01 02 03

—
01
Trim frame with
sheet steel door
—
02
Trim frame with
a sheet steel door
and ventilation slots
—
03
Trim frame with a sheet
steel door ventilation
slots and white
plastic insert for an
improved WiFi signal
— —
04 04
Clean cable conduit and
quick wiring thanks
to wire holders —
05
18
—
05
Device carrier (rubber)
for fast and simple
mounting of devices
