18/25

—

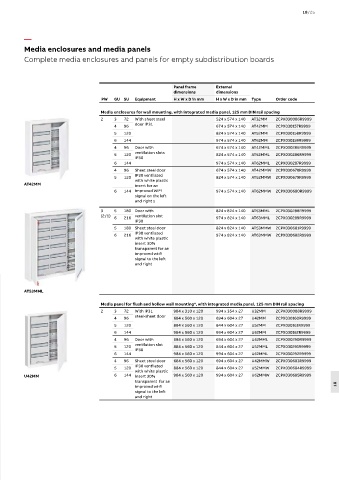

Media enclosures and media panels
Complete media enclosures and panels for empty subdistribution boards

Panel frame External
dimensions dimensions
PW GU SU Equipment H x W x D in mm H x W x D in mm Type Order code

Media enclosures for wall mounting, with integrated media panel, 125 mm DIN rail spacing
2 3 72 With sheet steel 524 x 574 x 140 AT32MM 2CPX030086R9999
4 96 door IP31 674 x 574 x 140 AT42MM 2CPX030157R9999
5 120 824 x 574 x 140 AT52MM 2CPX030158R9999
6 144 974 x 574 x 140 AT62MM 2CPX030159R9999
4 96 Door with 674 x 574 x 140 AT42MML 2CPX030285R9999
ventilation slots
5 120 824 x 574 x 140 AT52MML 2CPX030286R9999
IP30
6 144 974 x 574 x 140 AT62MML 2CPX030287R9999
4 96 Sheet steel door 674 x 574 x 140 AT42MMW 2CPX030678R9999
IP30 ventilated
5 120 824 x 574 x 140 AT52MMW 2CPX030679R9999
with white plastic
AT42MM insert for an
6 144 improved WiFi 974 x 574 x 140 AT62MMW 2CPX030680R9999
signal on the left
and right s
3 5 180 Door with 824 x 824 x 140 AT53MML 2CPX030288R9999
(2/1) 6 216 ventilation slot 974 x 824 x 140 AT63MML 2CPX030289R9999
IP30
5 180 Sheet steel door 824 x 824 x 140 AT53MMW 2CPX030681R9999
6 216 IP30 ventilated 974 x 824 x 140 AT63MMW 2CPX030682R9999
with white plastic
insert 30%
transparent for an
improved wi-fi
signal to the left
and right

AT53MML

Media panel for flush and hollow wall mounting*, with integrated media panel, 125 mm DIN rail spacing
2 3 72 With IP31 984 x 310 x 120 994 x 354 x 27 U32MM 2CPX030088R9999
steel-sheet door
4 96 684 x 560 x 120 694 x 604 x 27 U42MM 2CPX030160R9999
5 120 884 x 560 x 120 844 x 604 x 27 U52MM 2CPX030161R9999
6 144 984 x 560 x 120 994 x 604 x 27 U62MM 2CPX030162R9999
4 96 Door with 684 x 560 x 120 694 x 604 x 27 U42MML 2CPX030290R9999
ventilation slot
5 120 884 x 560 x 120 844 x 604 x 27 U52MML 2CPX030291R9999
IP30
6 144 984 x 560 x 120 994 x 604 x 27 U62MML 2CPX030292R9999
4 96 Sheet steel door 684 x 560 x 120 694 x 604 x 27 U42MMW 2CPX030683R9999
IP30 ventilated
5 120 884 x 560 x 120 844 x 604 x 27 U52MMW 2CPX030684R9999
with white plastic
U42MM 6 144 insert 30% 984 x 560 x 120 994 x 604 x 27 U62MMW 2CPX030685R9999
transparent for an
improved wi-fi 18
signal to the left
and right
