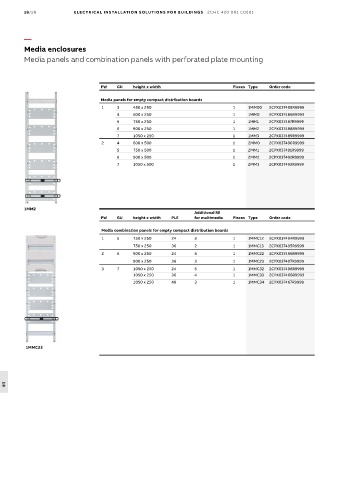

18/28 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Media enclosures
Media panels and combination panels with perforated plate mounting

PW GU height x width Pieces Type Order code

Media panels for empty compact distribution boards
1 3 450 x 250 1 1MM00 2CPX037485R9999
4 600 x 250 1 1MM0 2CPX037486R9999
5 750 x 250 1 1MM1 2CPX037487R9999
6 900 x 250 1 1MM2 2CPX037488R9999
7 1050 x 250 1 1MM3 2CPX037489R9999
2 4 600 x 500 1 2MM0 2CPX037490R9999
5 750 x 500 1 2MM1 2CPX037491R9999
6 900 x 500 1 2MM2 2CPX037492R9999
7 1050 x 500 1 2MM3 2CPX037493R9999

1MM2
Additional RE
PW GU height x width PLE for multimedia Pieces Type Order code

Media combination panels for empty compact distribution boards
1 5 750 x 250 24 3 1 1MMC12 2CPX037494R9999
750 x 250 36 2 1 1MMC13 2CPX037495R9999
2 6 900 x 250 24 4 1 1MMC22 2CPX037496R9999
900 x 250 36 3 1 1MMC23 2CPX037497R9999
3 7 1050 x 250 24 5 1 1MMC32 2CPX037498R9999
1050 x 250 36 4 1 1MMC33 2CPX037466R9999
1050 x 250 48 3 1 1MMC34 2CPX037467R9999

1MMC22

18
