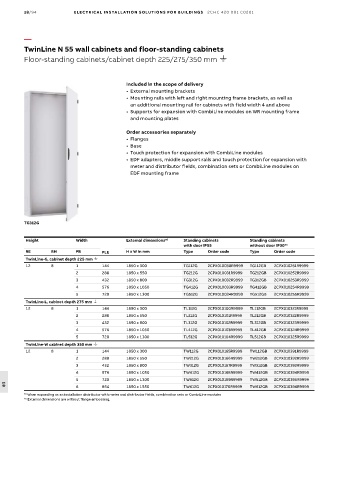

18/94 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
TwinLine N 55 wall cabinets and floor-standing cabinets
Floor-standing cabinets/cabinet depth 225/275/350 mm .

Included in the scope of delivery
• External mounting brackets
• Mounting rails with left and right mounting frame brackets, as well as
an additional mounting rail for cabinets with field width 4 and above
• Supports for expansion with CombiLine modules on WR mounting frame
and mounting plates

Order accessories separately
• Flanges
• Base
• Touch protection for expansion with CombiLine modules
• EDF adapters, middle support rails and touch protection for expansion with
meter and distributor fields, combination sets or CombiLine modules on
EDF mounting frame

TG312G

Height Width External dimensions* 2 Standing cabinets Standing cabinets
with door IP55 without door IP30* 1
RE BH FB PLE H x W in mm Type Order code Type Order code
TwinLine-G, cabinet depth 225 mm .
12 8 1 144 1850 x 300 TG112G 2CPX010030R9999 TG112GB 2CPX010251R9999
2 288 1850 x 550 TG212G 2CPX010031R9999 TG212GB 2CPX010252R9999
3 432 1850 x 800 TG312G 2CPX010032R9999 TG312GB 2CPX010253R9999
4 576 1850 x 1050 TG412G 2CPX010033R9999 TG412GB 2CPX010254R9999
5 720 1850 x 1300 TG512G 2CPX010034R9999 TG512GB 2CPX010255R9999
TwinLine-L, cabinet depth 275 mm .
12 8 1 144 1850 x 300 TL112G 2CPX010100R9999 TL112GB 2CPX010321R9999
2 288 1850 x 550 TL212G 2CPX010101R9999 TL212GB 2CPX010322R9999
3 432 1850 x 800 TL312G 2CPX010102R9999 TL312GB 2CPX010323R9999
4 576 1850 x 1050 TL412G 2CPX010103R9999 TL412GB 2CPX010324R9999
5 720 1850 x 1300 TL512G 2CPX010104R9999 TL512GB 2CPX010325R9999
TwinLine-W cabinet depth 350 mm .
12 8 1 144 1850 x 300 TW112G 2CPX010165R9999 TW112GB 2CPX010391R9999
2 288 1850 x 550 TW212G 2CPX010166R9999 TW212GB 2CPX010392R9999
3 432 1850 x 800 TW312G 2CPX010167R9999 TW312GB 2CPX010393R9999
4 576 1850 x 1050 TW412G 2CPX010168R9999 TW412GB 2CPX010394R9999
5 720 1850 x 1300 TW512G 2CPX010169R9999 TW512GB 2CPX010395R9999
6 864 1850 x 1550 TW612G 2CPX010170R9999 TW612GB 2CPX010396R9999
18
* 1 When expanding as an installation distributor with meter and distributor fields, combination sets or CombiLine modules
* 2 External dimensions are without flange embossing.
