18/98 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

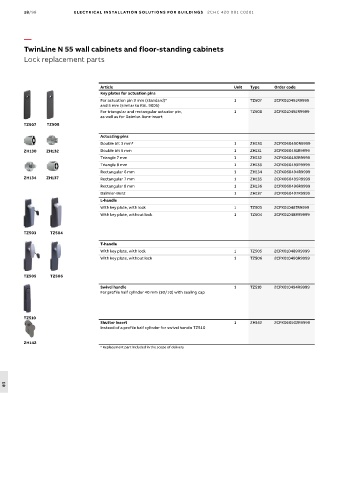

TwinLine N 55 wall cabinets and floor-standing cabinets
Lock replacement parts

Article Unit Type Order code
Key plates for actuation pins
For actuation pin 3 mm (standard)* 1 TZ507 2CPX010491R9999
and 5 mm (similar to RAL 9005)
For triangular and rectangular actuator pin, 1 TZ508 2CPX010492R9999
as well as for Daimler-Benz insert
TZ507 TZ508
Actuating pins
Double bit 3 mm* 1 ZH130 2CPX060490R9999
ZH130 ZH132 Double bit 5 mm 1 ZH131 2CPX060491R9999
Triangle 7 mm 1 ZH132 2CPX060492R9999
Triangle 8 mm 1 ZH133 2CPX060493R9999
Rectangular 6 mm 1 ZH134 2CPX060494R9999
ZH134 ZH137 Rectangular 7 mm 1 ZH135 2CPX060495R9999
Rectangular 8 mm 1 ZH136 2CPX060496R9999
Daimler-Benz 1 ZH137 2CPX060497R9999
L-handle
With key plate, with lock 1 TZ503 2CPX010487R9999
With key plate, without lock 1 TZ504 2CPX010488R9999

TZ503 TZ504

T-handle
With key plate, with lock 1 TZ505 2CPX010489R9999
With key plate, without lock 1 TZ506 2CPX010490R9999

TZ505 TZ506
Swivel handle 1 TZ510 2CPX010494R9999
For profile half cylinder 40 mm (30/10) with sealing cap

TZ510
Shutter insert 1 ZH142 2CPX060502R9999
Instead of a profile half cylinder for swivel handle TZ510

ZH142
* Replacement part included in the scope of delivery

18
