18/95

—

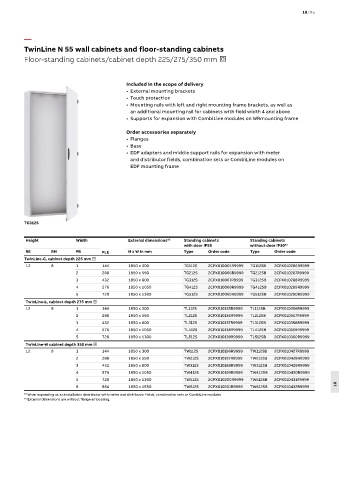

TwinLine N 55 wall cabinets and floor-standing cabinets
Floor-standing cabinets/cabinet depth 225/275/350 mm ,

Included in the scope of delivery
• External mounting brackets
• Touch protection
• Mounting rails with left and right mounting frame brackets, as well as
an additional mounting rail for cabinets with field width 4 and above
• Supports for expansion with CombiLine modules on WRmounting frame

Order accessories separately
• Flanges
• Base
• EDF adapters and middle support rails for expansion with meter
and distributor fields, combination sets or CombiLine modules on
EDF mounting frame

TG312S

Height Width External dimensions* 2 Standing cabinets Standing cabinets
with door IP55 without door IP30* 1
RE BH FB PLE H x W in mm Type Order code Type Order code
TwinLine-G, cabinet depth 225 mm ,
12 8 1 144 1850 x 300 TG112S 2CPX010065R9999 TG112SB 2CPX010286R9999
2 288 1850 x 550 TG212S 2CPX010066R9999 TG212SB 2CPX010287R9999
3 432 1850 x 800 TG312S 2CPX010067R9999 TG312SB 2CPX010288R9999
4 576 1850 x 1050 TG412S 2CPX010068R9999 TG412SB 2CPX010289R9999
5 720 1850 x 1300 TG512S 2CPX010069R9999 TG512SB 2CPX010290R9999
TwinLine-L, cabinet depth 275 mm ,
12 8 1 144 1850 x 300 TL112S 2CPX010135R9999 TL112SB 2CPX010356R9999
2 288 1850 x 550 TL212S 2CPX010136R9999 TL212SB 2CPX010357R9999
3 432 1850 x 800 TL312S 2CPX010137R9999 TL312SB 2CPX010358R9999
4 576 1850 x 1050 TL412S 2CPX010138R9999 TL412SB 2CPX010359R9999
5 720 1850 x 1300 TL512S 2CPX010139R9999 TL512SB 2CPX010360R9999
TwinLine-W cabinet depth 350 mm ,
12 8 1 144 1850 x 300 TW112S 2CPX010196R9999 TW112SB 2CPX010427R9999
2 288 1850 x 550 TW212S 2CPX010197R9999 TW212SB 2CPX010428R9999
3 432 1850 x 800 TW312S 2CPX010198R9999 TW312SB 2CPX010429R9999
4 576 1850 x 1050 TW412S 2CPX010199R9999 TW412SB 2CPX010430R9999
5 720 1850 x 1300 TW512S 2CPX010200R9999 TW512SB 2CPX010431R9999
6 864 1850 x 1550 TW612S 2CPX010201R9999 TW612SB 2CPX010432R9999 18
* 1 When expanding as an installation distributor with meter and distributor fields, combination sets or CombiLine modules
* 2 External dimensions are without flange embossing.
