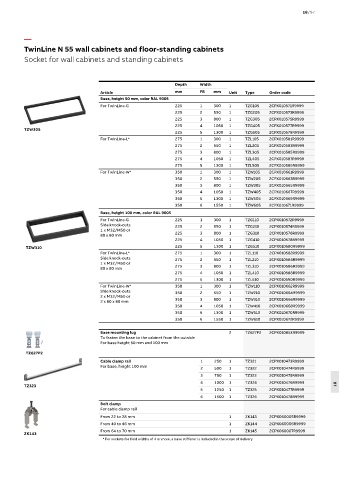

TwinLine N 55 wall cabinets and floor-standing cabinets
Socket for wall cabinets and standing cabinets

Depth Width
Article mm FB mm Unit Type Order code
Base, height 50 mm, color RAL 9005
For TwinLine-G 225 1 300 1 TZG105 2CPX010571R9999
225 2 550 1 TZG205 2CPX010573R9999
225 3 800 1 TZG305 2CPX010575R9999
225 4 1050 1 TZG405 2CPX010577R9999
TZW305
225 5 1300 1 TZG505 2CPX010579R9999
For TwinLine-L* 275 1 300 1 TZL105 2CPX010581R9999
275 2 550 1 TZL205 2CPX010583R9999
275 3 800 1 TZL305 2CPX010585R9999
275 4 1050 1 TZL405 2CPX010587R9999
275 5 1300 1 TZL505 2CPX010589R9999
For TwinLine-W* 350 1 300 1 TZW105 2CPX010661R9999
350 2 550 1 TZW205 2CPX010663R9999
350 3 800 1 TZW305 2CPX010665R9999
350 4 1050 1 TZW405 2CPX010667R9999
350 5 1300 1 TZW505 2CPX010669R9999
350 6 1550 1 TZW605 2CPX010671R9999
Base, height 100 mm, color RAL 9005
For TwinLine-G 225 1 300 1 TZG110 2CPX010572R9999
Side knock-outs 225 2 550 1 TZG210 2CPX010574R9999
1 x M32/M50 or
80 x 80 mm 225 3 800 1 TZG310 2CPX010576R9999
225 4 1050 1 TZG410 2CPX010578R9999
TZW310 225 5 1300 1 TZG510 2CPX010580R9999
For TwinLine-L* 275 1 300 1 TZL110 2CPX010582R9999
Side knock-outs 275 2 550 1 TZL210 2CPX010584R9999
1 x M32/M50 or
80 x 80 mm 275 3 800 1 TZL310 2CPX010586R9999
275 4 1050 1 TZL410 2CPX010588R9999
275 5 1300 1 TZL510 2CPX010590R9999
For TwinLine-W* 350 1 300 1 TZW110 2CPX010662R9999
Side knock-outs 350 2 550 1 TZW210 2CPX010664R9999
2 x M32/M50 or
2 x 80 x 80 mm 350 3 800 1 TZW310 2CPX010666R9999
350 4 1050 1 TZW410 2CPX010668R9999
350 5 1300 1 TZW510 2CPX010670R9999
350 6 1550 1 TZW610 2CPX010672R9999
Base mounting lug 2 TZ627P2 2CPX010853R9999
To fasten the base to the cabinet from the outside
For base height 50 mm and 100 mm
TZ627P2
Cable clamp rail 1 250 1 TZ321 2CPX010473R9999
For base, height 100 mm 2 500 1 TZ322 2CPX010474R9999
3 750 1 TZ323 2CPX010475R9999
4 1000 1 TZ324 2CPX010476R9999
TZ323 18
5 1250 1 TZ325 2CPX010477R9999
6 1500 1 TZ326 2CPX010478R9999
Bolt clamp
For cable clamp rail
From 22 to 28 mm 1 ZK143 2CPX060005R9999
From 40 to 46 mm 1 ZK144 2CPX060006R9999
From 64 to 70 mm 1 ZK145 2CPX060007R9999
ZK143
* For sockets for field widths of 4 or more, a base stiffener is included in the scope of delivery
