18/99

—

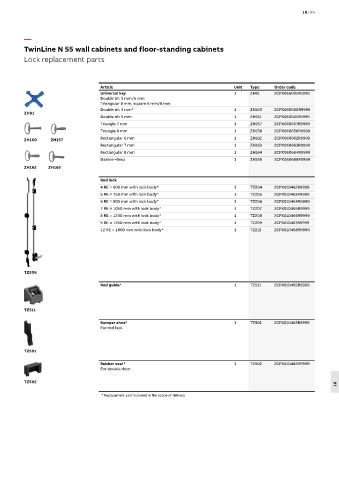

TwinLine N 55 wall cabinets and floor-standing cabinets
Lock replacement parts

Article Unit Type Order code
Universal key 1 ZH91 2CPX066091R9999
Double bit 3 mm/5 mm
Triangular 8 mm, square 6 mm/8 mm
Double bit 3 mm* 1 ZH160 2CPX060660R9999
ZH91
Double bit 5 mm 1 ZH161 2CPX060661R9999
Triangle 7 mm 1 ZH157 2CPX060657R9999
Triangle 8 mm 1 ZH158 2CPX060658R9999
ZH160 ZH157 Rectangular 6 mm 1 ZH162 2CPX060662R9999
Rectangular 7 mm 1 ZH163 2CPX060663R9999
Rectangular 8 mm 1 ZH164 2CPX060664R9999
Daimler-Benz 1 ZH165 2CPX060665R9999
ZH162 ZH165

Rod lock
4 RE = 600 mm with lock body* 1 TZ204 2CPX010462R9999
5 RE = 750 mm with lock body* 1 TZ205 2CPX010463R9999
6 RE = 900 mm with lock body* 1 TZ206 2CPX010464R9999
7 RE = 1050 mm with lock body* 1 TZ207 2CPX010465R9999
8 RE = 1200 mm with lock body* 1 TZ208 2CPX010466R9999
9 RE = 1350 mm with lock body* 1 TZ209 2CPX010467R9999
12 RE = 1800 mm with lock body* 1 TZ212 2CPX010468R9999

TZ206

Rod guide* 1 TZ511 2CPX010495R9999

TZ511

Bumper shoe* 1 TZ501 2CPX010485R9999
For rod lock

TZ501

Rubber seal * 1 TZ502 2CPX010486R9999
For double door

TZ502
18
* Replacement part included in the scope of delivery
