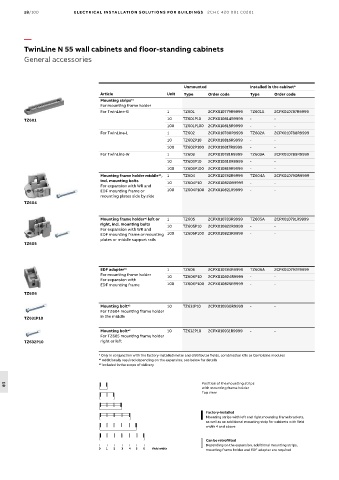

18/100 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
TwinLine N 55 wall cabinets and floor-standing cabinets
General accessories

Unmounted Installed in the cabinet*
Article Unit Type Order code Type Order code
Mounting strips* 1
For mounting frame holder
For TwinLine-G 1 TZ601 2CPX010779R9999 TZ601A 2CPX010787R9999
TZ601 10 TZ601P10 2CPX010814R9999 - -
100 TZ601P100 2CPX010815R9999 - -
For TwinLine-L 1 TZ602 2CPX010780R9999 TZ602A 2CPX010788R9999
10 TZ602P10 2CPX010816R9999 - -
100 TZ602P100 2CPX010817R9999 - -
For TwinLine-W 1 TZ603 2CPX010781R9999 TZ603A 2CPX010789R9999
10 TZ603P10 2CPX010818R9999 - -
100 TZ603P100 2CPX010819R9999 - -
Mounting frame holder middle* , 1 TZ604 2CPX010782R9999 TZ604A 2CPX010790R9999
1
incl. mounting bolts 10 TZ604P10 2CPX010820R9999 - -
For expansion with WR and
EDF mounting frame or 100 TZ604P100 2CPX010821R9999 - -
mounting plates side by side
TZ604

Mounting frame holder* left or 1 TZ605 2CPX010783R9999 TZ605A 2CPX010791R9999
1
right, incl. mounting bolts 10 TZ605P10 2CPX010822R9999 - -
For expansion with WR and
EDF mounting frame or mounting 100 TZ605P100 2CPX010823R9999 - -
plates or middle support rails
TZ605

EDF adapter* 1 1 TZ606 2CPX010784R9999 TZ606A 2CPX010792R9999
For mounting frame holder 10 TZ606P10 2CPX010824R9999 - -
For expansion with
EDF mounting frame 100 TZ606P100 2CPX010825R9999 - -
TZ606

Mounting bolt* 2 10 TZ631P10 2CPX010930R9999 - -
For TZ604 mounting frame holder
TZ631P10 in the middle

Mounting bolt* 2 10 TZ632P10 2CPX010931R9999 - -
For TZ605 mounting frame holder
TZ632P10 right or left

* Only in conjunction with the factory-installed meter and distributor fields, combination kits or CombiLine modules
* 1 Additionally required depending on the expansion; see below for details
* 2 Included in the scope of delivery

Position of the mounting strips
with mounting frame holder
18
Top view

Factory-installed
Mounting strips with left and right mounting frame brackets,
as well as an additional mounting strip for cabinets with field
width 4 and above

Can be retrofitted
Depending on the expansion, additional mounting strips,
0 1 2 3 4 5 6 field width mounting frame holder and EDF adapter are required
