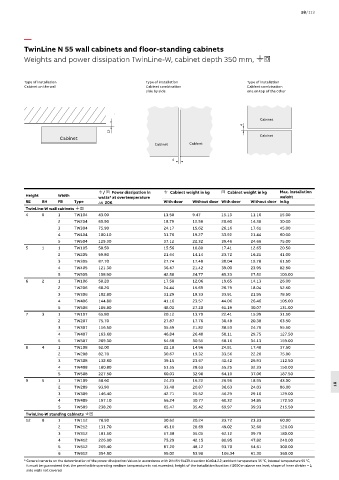

TwinLine N 55 wall cabinets and floor-standing cabinets
Weights and power dissipation TwinLine-W, cabinet depth 350 mm, .,

Type of installation Type of installation Type of installation
Cabinet on the wall Cabinet combination Cabinet combination
side by side one on top of the other

Cabinet
4
12
Cabinet
Cabinet
Cabinet Cabinet

4

./ , Power dissipation in . Cabinet weight in kg , Cabinet weight in kg Max. installation
Height Width watts* at overtemperature weight
RE BH FB Type t 20K With door Without door With door Without door in kg
TwinLine-W wall cabinets .,
4 0 1 TW104 43.00 13.50 9.47 15.13 11.16 15.00
2 TW204 65.90 18.79 12.58 20.60 14.38 30.00
3 TW304 75.90 24.17 15.62 26.16 17.61 45.00
4 TW404 100.10 31.76 19.27 33.92 21.44 60.00
5 TW504 129.30 37.12 22.32 39.46 24.66 75.00
5 1 1 TW105 50.50 15.56 10.80 17.41 12.65 20.50
2 TW205 59.80 21.64 14.14 23.72 16.21 41.00
3 TW305 87.70 27.74 17.48 30.04 19.78 61.50
4 TW405 121.30 36.47 21.42 39.00 23.95 82.50
5 TW505 158.90 42.58 24.77 45.33 27.52 103.00
6 2 1 TW106 58.20 17.58 12.06 19.65 14.13 26.00
2 TW206 68.20 24.44 15.69 26.79 18.04 52.50
3 TW306 102.80 31.29 19.33 33.91 21.95 78.50
4 TW406 144.80 41.16 23.57 44.06 26.46 105.00
5 TW506 185.80 48.02 27.20 51.19 30.07 131.00
7 3 1 TW107 65.80 20.12 13.70 22.41 15.99 31.50
2 TW207 75.70 27.87 17.76 30.48 20.38 63.50
3 TW307 116.50 35.59 21.82 38.53 24.76 95.50
4 TW407 163.60 46.84 26.48 50.11 29.75 127.50
5 TW507 209.30 54.58 30.55 58.16 34.13 159.00
8 4 1 TW108 52.00 22.18 14.96 24.81 17.48 37.50
2 TW208 82.70 30.67 19.32 33.56 22.20 75.00
3 TW308 132.60 39.15 23.67 42.42 26.93 112.50
4 TW408 180.80 51.55 28.63 55.25 32.33 150.00
5 TW508 227.50 60.03 32.98 64.10 37.06 187.50
9 5 1 TW109 58.60 24.23 16.22 26.96 18.95 43.00
2 TW209 93.90 33.48 20.87 36.63 24.03 86.00 18
3 TW309 146.40 42.71 25.52 46.29 29.10 129.00
4 TW409 197.10 56.24 30.77 60.32 34.85 172.50
5 TW509 238.20 65.47 35.42 69.97 39.93 215.50
TwinLine-W standing cabinets .,
12 8 1 TW112 78.90 30.62 20.24 33.72 23.33 60.00
2 TW212 131.70 45.10 28.69 49.02 32.60 120.00
3 TW312 181.50 57.38 35.05 62.12 39.79 180.00
4 TW412 226.00 75.29 42.15 80.95 47.82 240.00
5 TW512 269.40 87.20 48.12 93.70 54.61 300.00
6 TW612 354.50 99.02 53.98 106.34 61.30 360.00
* General remarks on the determination of the power dissipation: Values in accordance with DIN EN 61439-1 section 10.10.4.2.2; ambient temperature 35 °C, internal temperature 55 °C,
it must be guaranteed that the permissible operating medium temperature is not exceeded; height of the installation location ≤ 2000 m above sea level; shape of inner divider = 1;
side walls not covered
