18/114 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

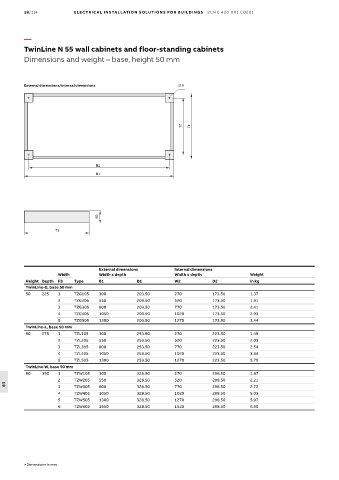

TwinLine N 55 wall cabinets and floor-standing cabinets
Dimensions and weight – base, height 50 mm

External dimensions/internal dimensions 9

T2 T1

B2
B1

50

T1

External dimensions Internal dimensions
Width Width x depth Width x depth Weight
Height Depth FB Type B1 D1 W2 D2 in kg
TwinLine-G, base 50 mm
50 225 1 TZG105 300 203.50 270 173.50 1.37
2 TZG205 550 203.50 520 173.50 1.91
3 TZG305 800 203.50 770 173.50 2.41
4 TZG405 1050 203.50 1020 173.50 2.93
5 TZG505 1300 203.50 1270 173.50 3.44
TwinLine-L, base 50 mm
50 275 1 TZL105 300 253.50 270 223.50 1.49
2 TZL205 550 253.50 520 223.50 2.03
3 TZL305 800 253.50 770 223.50 2.54
4 TZL405 1050 253.50 1020 223.50 3.34
5 TZL505 1300 253.50 1270 223.50 5.78
TwinLine-W, base 50 mm
50 350 1 TZW105 300 328.50 270 298.50 1.67
2 TZW205 550 328.50 520 298.50 2.21
3 TZW305 800 328.50 770 298.50 2.72
18
4 TZW405 1050 328.50 1020 298.50 5.03
5 TZW505 1300 328.50 1270 298.50 5.97
6 TZW605 1550 328.50 1520 298.50 6.90

> Dimensions in mm
