18/117

—

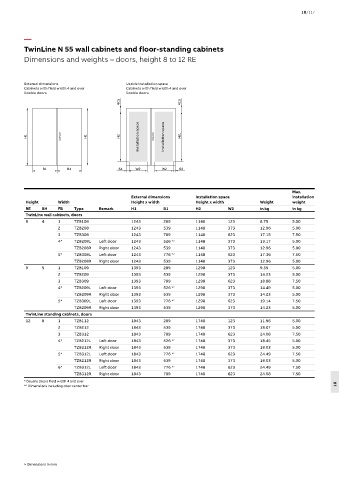

TwinLine N 55 wall cabinets and floor-standing cabinets
Dimensions and weights – doors, height 8 to 12 RE

External dimensions Usable installation space
Cabinets with field width 4 and over Cabinets with field width 4 and over
Double doors Double doors
47.5 47.5

H1 H1 H2 Installation space Installation space H2,

B1 B1 64 W2 W2 64

Max.
External dimensions Installation space installation
Height Width Height x width Height x width Weight weight
RE BH FB Type Remark H1 B1 H2 W2 in kg in kg
TwinLine wall cabinets, doors
8 4 1 TZB108 1243 289 1148 123 8.75 5.00
2 TZB208 1243 539 1148 373 12.96 5.00
3 TZB308 1243 789 1148 623 17.15 7.50
4* TZB208L Left door 1243 526 * 2 1148 373 13.17 5.00
TZB208R Right door 1243 539 1148 373 12.96 5.00
5* TZB308L Left door 1243 776 * 2 1148 623 17.36 7.50
TZB208R Right door 1243 539 1148 373 12.96 5.00
9 5 1 TZB109 1393 289 1298 123 9.55 5.00
2 TZB209 1393 539 1298 373 14.23 5.00
3 TZB309 1393 789 1298 623 18.88 7.50
4* TZB209L Left door 1393 526 * 2 1298 373 14.49 5.00
TZB209R Right door 1393 539 1298 373 14.23 5.00
5* TZB309L Left door 1393 776 * 2 1298 623 19.14 7.50
TZB209R Right door 1393 539 1298 373 14.23 5.00
TwinLine standing cabinets, doors
12 8 1 TZB112 1843 289 1748 123 11.96 5.00
2 TZB212 1843 539 1748 373 18.07 5.00
3 TZB312 1843 789 1748 623 24.08 7.50
4* TZB212L Left door 1843 526 * 2 1748 373 18.45 5.00
TZB212R Right door 1843 539 1748 373 18.03 5.00
5* TZB312L Left door 1843 776 * 2 1748 623 24.49 7.50
TZB212R Right door 1843 539 1748 373 18.03 5.00
6* TZB312L Left door 1843 776 * 2 1748 623 24.49 7.50
TZB312R Right door 1843 789 1748 623 24.08 7.50
* Double doors field width 4 and over
* 2 Dimensions including door center bar 18

> Dimensions in mm
