18/118 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

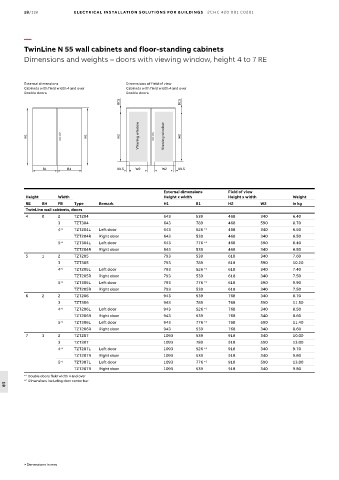

TwinLine N 55 wall cabinets and floor-standing cabinets
Dimensions and weights – doors with viewing window, height 4 to 7 RE

External dimensions Dimensions of field of view
Cabinets with field width 4 and over Cabinets with field width 4 and over
Double doors Double doors
87.5 87.5

Viewing window

H1 H1 H2 Viewing window H2

B1 B1 99.5 W2 W2 99.5

External dimensions Field of view
Height Width Height x width Height x width Weight
RE BH FB Type Remark H1 B1 H2 W2 in kg
TwinLine wall cabinets, doors
4 0 2 TZT204 643 539 468 340 6.40
3 TZT304 643 789 468 590 8.70
4* 1 TZT204L Left door 643 526 * 2 468 340 6.50
TZT204R Right door 643 539 468 340 6.50
5* 1 TZT304L Left door 643 776 * 2 468 590 8.40
TZT204R Right door 643 539 468 340 6.50
5 1 2 TZT205 793 539 618 340 7.60
3 TZT305 793 789 618 590 10.20
4* 1 TZT205L Left door 793 526 * 2 618 340 7.40
TZT205R Right door 793 539 618 340 7.50
5* 1 TZT305L Left door 793 776 * 2 618 590 9.90
TZT205R Right door 793 539 618 340 7.50
6 2 2 TZT206 943 539 768 340 8.70
3 TZT306 943 789 768 590 11.50
4* 1 TZT206L Left door 943 526 * 2 768 340 8.50
TZT206R Right door 943 539 768 340 8.60
5* 1 TZT306L Left door 943 776 * 2 768 590 11.40
TZT206R Right door 943 539 768 340 8.60
7 3 2 TZT207 1093 539 918 340 10.00
3 TZT307 1093 789 918 590 13.00
4* 1 TZT207L Left door 1093 526 * 2 918 340 9.70
TZT207R Right door 1093 539 918 340 9.80
5* 1 TZT307L Left door 1093 776 * 2 918 590 13.00
TZT207R Right door 1093 539 918 340 9.80
* 1 Double doors field width 4 and over
* 2 Dimensions including door center bar
18

> Dimensions in mm
