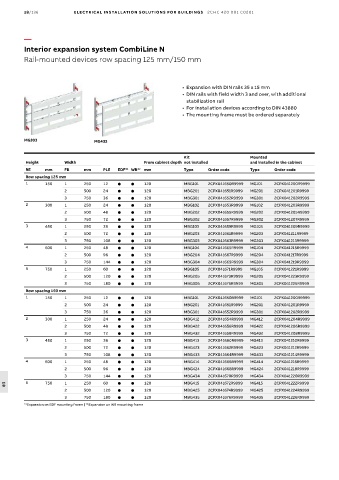

18/136 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Rail-mounted devices row spacing 125 mm/150 mm

• Expansion with DIN rails 35 x 15 mm
• DIN rails with field width 3 and over, with additional
stabilization rail
• For installation devices according to DIN 43880
• The mounting frame must be ordered separately

MG303 MG433

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* 1 WR* 2 mm Type Order code Type Order code
Row spacing 125 mm
1 150 1 250 12   120 MBG101 2CPX041650R9999 MG101 2CPX041200R9999
2 500 24   120 MBG201 2CPX041651R9999 MG201 2CPX041201R9999
3 750 36   120 MBG301 2CPX041652R9999 MG301 2CPX041202R9999
2 300 1 250 24   120 MBG102 2CPX041653R9999 MG102 2CPX041203R9999
2 500 48   120 MBG202 2CPX041655R9999 MG202 2CPX041205R9999
3 750 72   120 MBG302 2CPX041657R9999 MG302 2CPX041207R9999
3 450 1 250 36   120 MBG103 2CPX041659R9999 MG103 2CPX041209R9999
2 500 72   120 MBG203 2CPX041661R9999 MG203 2CPX041211R9999
3 750 108   120 MBG303 2CPX041663R9999 MG303 2CPX041213R9999
4 600 1 250 48   120 MBG104 2CPX041665R9999 MG104 2CPX041215R9999
2 500 96   120 MBG204 2CPX041667R9999 MG204 2CPX041217R9999
3 750 144   120 MBG304 2CPX041669R9999 MG304 2CPX041219R9999
5 750 1 250 60   120 MBG105 2CPX041671R9999 MG105 2CPX041221R9999
2 500 120   120 MBG205 2CPX041673R9999 MG205 2CPX041223R9999
3 750 180   120 MBG305 2CPX041675R9999 MG305 2CPX041225R9999
Row spacing 150 mm
1 150 1 250 12   120 MBG101 2CPX041650R9999 MG101 2CPX041200R9999
2 500 24   120 MBG201 2CPX041651R9999 MG201 2CPX041201R9999
3 750 36   120 MBG301 2CPX041652R9999 MG301 2CPX041202R9999
2 300 1 250 24   120 MBG412 2CPX041654R9999 MG412 2CPX041204R9999
2 500 48   120 MBG422 2CPX041656R9999 MG422 2CPX041206R9999
3 750 72   120 MBG432 2CPX041658R9999 MG432 2CPX041208R9999
3 450 1 250 36   120 MBG413 2CPX041660R9999 MG413 2CPX041210R9999
2 500 72   120 MBG423 2CPX041662R9999 MG423 2CPX041212R9999
3 750 108   120 MBG433 2CPX041664R9999 MG433 2CPX041214R9999
4 600 1 250 48   120 MBG414 2CPX041666R9999 MG414 2CPX041216R9999
2 500 96   120 MBG424 2CPX041668R9999 MG424 2CPX041218R9999
3 750 144   120 MBG434 2CPX041670R9999 MG434 2CPX041220R9999
5 750 1 250 60   120 MBG415 2CPX041672R9999 MG415 2CPX041222R9999
18
2 500 120   120 MBG425 2CPX041674R9999 MG425 2CPX041224R9999
3 750 180   120 MBG435 2CPX041676R9999 MG435 2CPX041226R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
