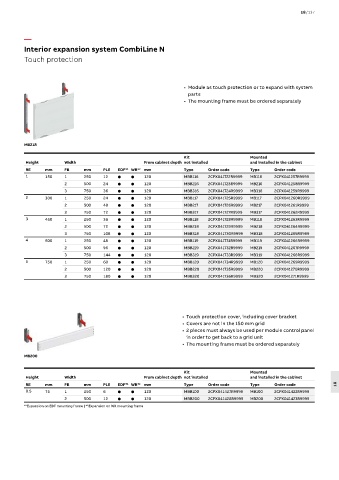

Interior expansion system CombiLine N
Touch protection

• Module as touch protection or to expand with system
parts
• The mounting frame must be ordered separately

MB218

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* 1 WR* 2 mm Type Order code Type Order code
1 150 1 250 12   120 MBB116 2CPX041722R9999 MB116 2CPX041257R9999
2 500 24   120 MBB216 2CPX041723R9999 MB216 2CPX041258R9999
3 750 36   120 MBB316 2CPX041724R9999 MB316 2CPX041259R9999
2 300 1 250 24   120 MBB117 2CPX041725R9999 MB117 2CPX041260R9999
2 500 48   120 MBB217 2CPX041726R9999 MB217 2CPX041261R9999
3 750 72   120 MBB317 2CPX041727R9999 MB317 2CPX041262R9999
3 450 1 250 36   120 MBB118 2CPX041728R9999 MB118 2CPX041263R9999
2 500 72   120 MBB218 2CPX041729R9999 MB218 2CPX041264R9999
3 750 108   120 MBB318 2CPX041730R9999 MB318 2CPX041265R9999
4 600 1 250 48   120 MBB119 2CPX041731R9999 MB119 2CPX041266R9999
2 500 96   120 MBB219 2CPX041732R9999 MB219 2CPX041267R9999
3 750 144   120 MBB319 2CPX041733R9999 MB319 2CPX041268R9999
5 750 1 250 60   120 MBB120 2CPX041734R9999 MB120 2CPX041269R9999
2 500 120   120 MBB220 2CPX041735R9999 MB220 2CPX041270R9999
3 750 180   120 MBB320 2CPX041736R9999 MB320 2CPX041271R9999

• Touch protection cover, including cover bracket
• Covers are not in the 150 mm grid
• 2 pieces must always be used per module control panel
in order to get back to a grid unit
• The mounting frame must be ordered separately

MB200

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* 1 WR* 2 mm Type Order code Type Order code 18
0.5 75 1 250 6   120 MBB100 2CPX041427R9999 MB100 2CPX041422R9999
2 500 12   120 MBB200 2CPX041428R9999 MB200 2CPX041423R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
