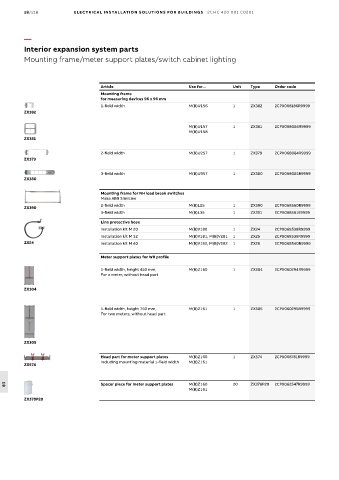

18/218 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system parts
Mounting frame/meter support plates/switch cabinet lighting

Article Use for... Unit Type Order code
Mounting frame
for measuring devices 96 x 96 mm
1-field width M(B)U156 1 ZX382 2CPX068186R9999
ZX382

M(B)U157 1 ZX381 2CPX068086R9999
M(B)U158
ZX381

2-field width M(B)U257 1 ZX379 2CPX068084R9999
ZX379

3-field width M(B)U357 1 ZX380 2CPX068085R9999
ZX380

Mounting frame for NH load break switches
Make ABB SlimLine
2-field width M(B)L25 1 ZX390 2CPX068560R9999
ZX390
3-field width M(B)L35 1 ZX391 2CPX068561R9999
Line protective hose
Installation kit M 20 M(B)V180 1 ZX24 2CPX068538R9999
Installation kit M 32 M(B)V181, M(B)V281 1 ZX25 2CPX068539R9999
ZX24 Installation kit M 40 M(B)V182, M(B)V282 1 ZX26 2CPX068540R9999

Meter support plates for WR profile
1-field width, height 450 mm, M(B)Z160 1 ZX304 2CPX060294R9999
For a meter, without head part

ZX304

1-field width, height 750 mm, M(B)Z161 1 ZX305 2CPX060295R9999
For two meters, without head part

ZX305

Head part for meter support plates M(B)Z160 1 ZX574 2CPX068781R9999
Including mounting material 1-field width M(B)Z161
ZX574

Spacer piece for meter support plates M(B)Z160 20 ZX378P20 2CPX062547R9999
M(B)Z161
18
ZX378P20
