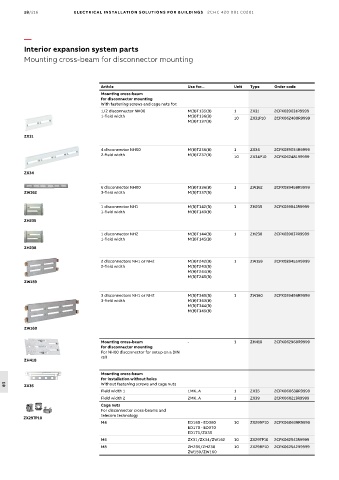

18/216 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system parts
Mounting cross-beam for disconnector mounting

Article Use for... Unit Type Order code
Mounting cross-beam
for disconnector mounting
With fastening screws and cage nuts for:
1/2 disconnector NH00 M(B)T135(B) 1 ZX31 2CPX039031R9999
1-field width M(B)T136(B) 10 ZX31P10 2CPX062480R9999
M(B)T137(B)

ZX31

4 disconnector NH00 M(B)T236(B) 1 ZX34 2CPX039034R9999
2-field width M(B)T237(B) 10 ZX34P10 2CPX062481R9999

ZX34

6 disconnector NH00 M(B)T336(B) 1 ZW162 2CPX039458R9999
ZW162 3-field width M(B)T337(B)

1 disconnector NH1 M(B)T142(B) 1 ZH235 2CPX039841R9999
1-field width M(B)T143(B)
ZH235

1 disconnector NH2 M(B)T144(B) 1 ZH238 2CPX039837R9999
1-field width M(B)T145(B)
ZH238

2 disconnectors NH1 or NH2 M(B)T242(B) 1 ZW159 2CPX039455R9999
2-field width M(B)T243(B)
M(B)T244(B)
M(B)T245(B)
ZW159

3 disconnectors NH1 or NH2 M(B)T345(B) 1 ZW160 2CPX039456R9999
3-field width M(B)T343(B)
M(B)T344(B)
M(B)T345(B)

ZW160

Mounting cross-beam - 1 ZH418 2CPX062968R9999
for disconnector mounting
For NH00 disconnector for setup on a DIN
rail
ZH418
Mounting cross-beam
for installation without holes
ZX35 Without fastening screws and cage nuts
18
Field width 1 1MK..A 1 ZX35 2CPX060638R9999
Field width 2 2MK..A 1 ZX39 2CPX060213R9999
Cage nuts
For disconnector cross-beams and
telecom technology
ZX297P10
M4 ED160 - ED360 10 ZX299P10 2CPX060639R9999
ED170 - ED370
ED171/ZX35
M6 ZX31/ZX34/ZW162 10 ZX297P10 2CPX062541R9999
M8 ZH235/ZH238 10 ZX298P10 2CPX062542R9999
ZW159/ZW160
