18/217

—

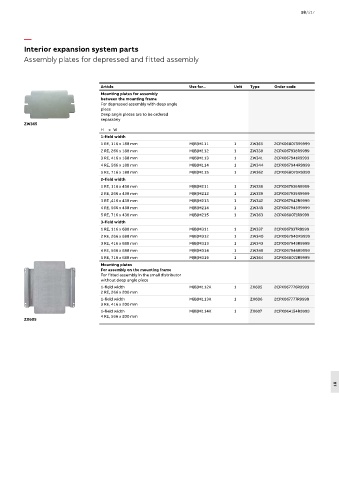

Interior expansion system parts
Assembly plates for depressed and fitted assembly

Article Use for... Unit Type Order code
Mounting plates for assembly
between the mounting frame
For depressed assembly with deep angle
piece
Deep angle pieces are to be ordered
separately
ZW365
H x W
1-field width
1 RE, 116 x 188 mm M(B)M111 1 ZW365 2CPX068073R9999
2 RE, 266 x 188 mm M(B)M112 1 ZW338 2CPX067938R9999
3 RE, 416 x 188 mm M(B)M113 1 ZW341 2CPX067941R9999
4 RE, 566 x 188 mm M(B)M114 1 ZW344 2CPX067944R9999
5 RE, 716 x 188 mm M(B)M115 1 ZW362 2CPX068070R9999
2-field width
1 RE, 116 x 438 mm M(B)M211 1 ZW336 2CPX067936R9999
2 RE, 266 x 438 mm M(B)M212 1 ZW339 2CPX067939R9999
3 RE ,416 x 438 mm M(B)M213 1 ZW342 2CPX067942R9999
4 RE, 566 x 438 mm M(B)M214 1 ZW345 2CPX067945R9999
5 RE, 716 x 438 mm M(B)M215 1 ZW363 2CPX068071R9999
3-field width
1 RE, 116 x 688 mm M(B)M311 1 ZW337 2CPX067937R9999
2 RE, 266 x 688 mm M(B)M312 1 ZW340 2CPX067940R9999
3 RE, 416 x 688 mm M(B)M313 1 ZW343 2CPX067943R9999
4 RE, 566 x 688 mm M(B)M314 1 ZW346 2CPX067946R9999
5 RE, 716 x 688 mm M(B)M315 1 ZW364 2CPX068072R9999
Mounting plates
For assembly on the mounting frame
For fitted assembly in the small distributor
without deep angle piece
1-field width M(B)M112K 1 ZX605 2CPX067776R9999
2 RE, 266 x 200 mm
1-field width M(B)M113K 1 ZX606 2CPX067777R9999
3 RE, 416 x 200 mm
1-field width M(B)M114K 1 ZX607 2CPX064154R9999
4 RE, 566 x 200 mm
ZX605

18
