18/234 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

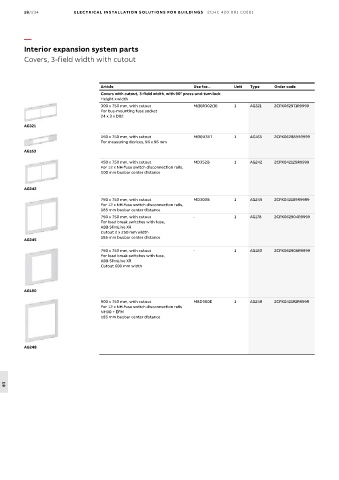

Interior expansion system parts
Covers, 3-field width with cutout

Article Use for... Unit Type Order code
Covers with cutout, 3-field width, with 90° press-and-turn lock
Height x width
300 x 750 mm, with cutout M(B)R302(B) 1 AG321 2CPX062971R9999
For bus-mounting fuse socket
24 x 3 x D02
AG321

150 x 750 mm, with cutout M(B)U357 1 AG163 2CPX062889R9999
For measuring devices, 96 x 96 mm
AG163

450 x 750 mm, with cutout MD352B 1 AG242 2CPX042129R9999
For 12 x NH-fuse switch disconnection rails,
100 mm busbar center distance

AG242
750 x 750 mm, with cutout MD300B 1 AG245 2CPX042189R9999
For 12 x NH-fuse switch disconnection rails,
185 mm busbar center distance
750 x 750 mm, with cutout - 1 AG178 2CPX062904R9999
For load break switches with fuse,
ABB SlimLine XR
Cutout 2 x 250 mm width
185 mm busbar center distance
AG245
750 x 750 mm, with cutout - 1 AG180 2CPX062906R9999
For load break switches with fuse,
ABB SlimLine XR
Cutout 600 mm width

AG180

900 x 750 mm, with cutout MBD300E 1 AG248 2CPX042192R9999
For 12 x NH-fuse switch disconnection rails
NH00 + EFM
185 mm busbar center distance

AG248

18
