18/233

—

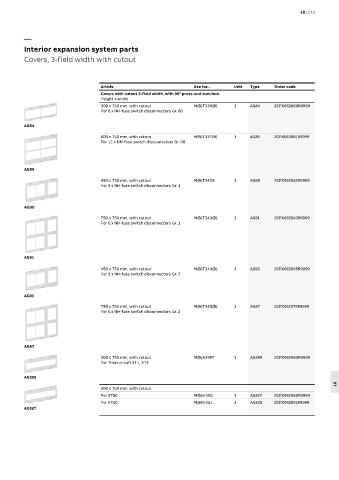

Interior expansion system parts
Covers, 3-field width with cutout

Article Use for... Unit Type Order code
Covers with cutout 3-field width, with 90° press-and-turn lock
Height x width
300 x 750 mm, with cutout M(B)T336(B) 1 AG84 2CPX062880R9999
For 6 x NH-fuse switch disconnectors Gr. 00

AG84

600 x 750 mm, with cutout M(B)T337(B) 1 AG85 2CPX062881R9999
For 12 x NH-fuse switch disconnectors Gr. 00

AG85
450 x 750 mm, with cutout M(B)T342B 1 AG90 2CPX062882R9999
For 3 x NH-fuse switch disconnectors Gr. 1

AG90
750 x 750 mm, with cutout M(B)T343(B) 1 AG91 2CPX062883R9999
For 6 x NH-fuse switch disconnectors Gr. 1

AG91
450 x 750 mm, with cutout M(B)T344(B) 1 AG93 2CPX062885R9999
For 3 x NH-fuse switch disconnectors Gr. 2

AG93

750 x 750 mm, with cutout M(B)T345(B) 1 AG67 2CPX062872R9999
For 6 x NH-fuse switch disconnectors Gr. 2

AG67

300 x 750 mm, with cutout M(B)A390T 1 AG359 2CPX062980R9999
For Tmax circuit XT1, XT3

AG359
18
300 x 750 mm, with cutout
For S700 M(B)H350 1 AG327 2CPX062988R9999
For S750 M(B)H351 1 AG328 2CPX062991R9999
AG327
