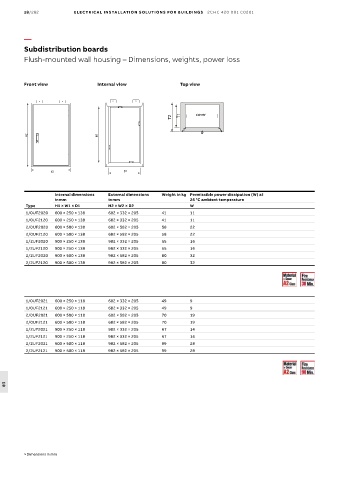

18/282 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Flush-mounted wall housing – Dimensions, weights, power loss

Front view Internal view Top view

cover

Internal dimensions External dimensions Weight in kg Permissible power dissipation (W) at
in mm in mm 25 °C ambient temperature
Type H1 × W1 × D1 H2 × W2 × D2 W
1/0UF2020 600 × 250 × 138 682 × 332 × 205 41 11
1/0UF2120 600 × 250 × 138 682 × 332 × 205 41 11
2/0UF2020 600 × 500 × 138 682 × 582 × 205 58 22
2/0UF2120 600 × 500 × 138 682 × 582 × 205 58 22
1/2UF2020 900 × 250 × 138 982 × 332 × 205 55 16
1/2UF2120 900 × 250 × 138 982 × 332 × 205 55 16
2/2UF2020 900 × 500 × 138 982 × 582 × 205 80 32
2/2UF2120 900 × 500 × 138 982 × 582 × 205 80 32

1/0UF2021 600 × 250 × 118 682 × 332 × 205 49 9
1/0UF2121 600 × 250 × 118 682 × 332 × 205 49 9
2/0UF2021 600 × 500 × 118 682 × 582 × 205 70 19
2/0UF2121 600 × 500 × 118 682 × 582 × 205 70 19
1/2UF2021 900 × 250 × 118 982 × 332 × 205 67 14
1/2UF2121 900 × 250 × 118 982 × 332 × 205 67 14
2/2UF2021 900 × 500 × 118 982 × 582 × 205 99 28
2/2UF2121 900 × 500 × 118 982 × 582 × 205 99 28

18

> Dimensions in mm
