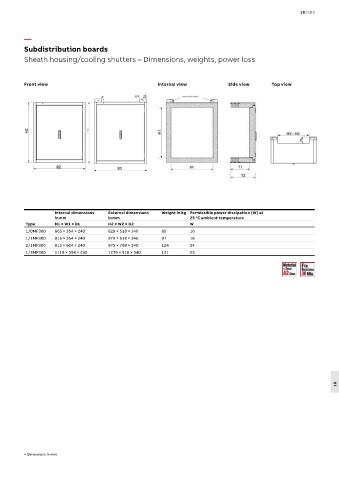

Subdistribution boards
Sheath housing/cooling shutters – Dimensions, weights, power loss
Front view Internal view Side view Top view
Internal dimensions External dimensions Weight in kg Permissible power dissipation (W) at
in mm in mm 25 °C ambient temperature
Type H1 × W1 × D1 H2 × W2 × D2 W
1/0MF300 665 × 354 × 240 829 × 518 × 340 85 16
1/1MF300 815 × 354 × 240 979 × 518 × 340 97 18
2/1MF300 815 × 604 × 240 979 × 768 × 340 124 24
1/3MF300 1115 × 354 × 240 1279 × 518 × 340 121 23
18
> Dimensions in mm
