18/284 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Subdistribution boards

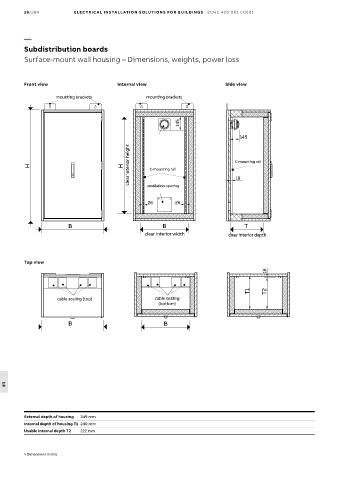

Surface-mount wall housing – Dimensions, weights, power loss
Front view Internal view Side view
mounting brackets mounting brackets
145
145
clear interior height C-mounting rail
H H C-mounting rail 18
ventilation opening
26 26
B B T
clear interior width clear interior depth
Top view
18
T1 T2
cable sealing (top) cable sealing
(bottom)
B B
18
External depth of housing 349 mm
Internal depth of housing T1 240 mm
Usable internal depth T2 222 mm
> Dimensions in mm
