18/347

—

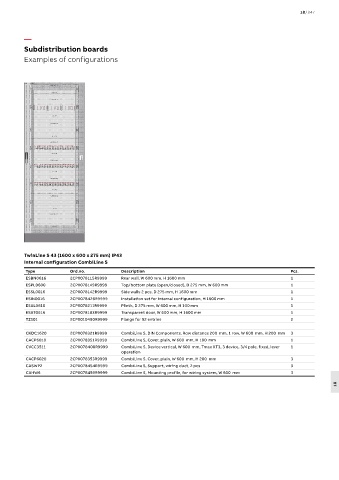

Subdistribution boards
Examples of configurations

1
+0 +01 ESBN0616
CACP60100
+01.10
CVCC3511
ABB TMax XT3 ABB TMax XT3 ABB TMax XT3
+01.40
CACP6020

+01.20
CKDD1620
+01.50
CKDD1620
+01.70
CKDD1620
+01.60
CACP6020

+01.30
CACP6020

+01.80

TwinLine S 43 (1600 x 600 x 275 mm) IP43
Internal configuration CombiLine S
Type Ord.no. Description Pcs.
ESBN0616 2CPX078115R9999 Rear wall, W 600 mm, H 1600 mm 1
ESPL0600 2CPX078149R9999 Top/bottom plate (open/closed), D 275 mm, W 600 mm 1
ESSL0016 2CPX078142R9999 Side walls 2 pcs, D 275 mm, H 1600 mm 1
ESIN0016 2CPX078426R9999 Installation set for internal configuration, H 1600 mm 1
ESAL0610 2CPX078211R9999 Plinth, D 275 mm, W 600 mm, H 100 mm 1
ESAT0616 2CPX078183R9999 Transparent door, W 600 mm, H 1600 mm 1
TZ101 2CPX010450R9999 Flange for 52 entries 2
CKDC1620 2CPX078321R9999 CombiLine S, DIN Components, Row distance 200 mm, 1 row, W 600 mm, H 200 mm 3
CACP6010 2CPX078351R9999 CombiLine S, Cover, plain, W 600 mm, H 100 mm 1
CVCC3511 2CPX078400R9999 CombiLine S, Device vertical, W 600 mm, Tmax XT3, 3 device, 3/4 pole, fixed, lever 1
operation
CACP6020 2CPX078353R9999 CombiLine S, Cover, plain, W 600 mm, H 200 mm 3
CASWP2 2CPX078454R9999 CombiLine S, Support, wiring duct, 2 pcs 3
CAHW6 2CPX078459R9999 CombiLine S, Mounting profile, for wiring system, W 600 mm 3
