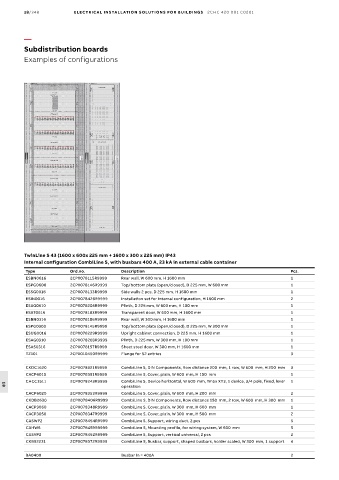

18/348 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Examples of configurations

+0
1
+01 ESBN0616 +02 ESBN0316
CACP60100
CACP4060
+01.60
CHCC1511
+01.30
CKDB2630

+01.70 +02.20
CKBS2233
CACP4050
CKDD1620 +02.10
+01.20
CKDD1620
+01.10
CKDD1620
+02.30
CACP4050
+01.80
CACP6020

+01.50
CACP6020

+01.40
+02.40

TwinLine S 43 (1600 x 600x 225 mm + 1600 x 300 x 225 mm) IP43
Internal configuration CombiLine S, with busbars 400 A, 23 kA in external cable container
Type Ord.no. Description Pcs.
ESBN0616 2CPX078115R9999 Rear wall, W 600 mm, H 1600 mm 1
ESPG0600 2CPX078146R9999 Top/bottom plate (open/closed), D 225 mm, W 600 mm 1
ESSG0016 2CPX078133R9999 Side walls 2 pcs, D 225 mm, H 1600 mm 1
ESIN0016 2CPX078426R9999 Installation set for internal configuration, H 1600 mm 2
ESAG0610 2CPX078205R9999 Plinth, D 225 mm, W 600 mm, H 100 mm 1
ESAT0616 2CPX078183R9999 Transparent door, W 600 mm, H 1600 mm 1
ESBN0316 2CPX078106R9999 Rear wall, W 300 mm, H 1600 mm 1
ESPG0300 2CPX078145R9999 Top/bottom plate (open/closed), D 225 mm, W 300 mm 1
ESUG0016 2CPX078229R9999 Upright cabinet connection, D 225 mm, H 1600 mm 1
ESAG0310 2CPX078203R9999 Plinth, D 225 mm, W 300 mm, H 100 mm 1
ESAS0316 2CPX078157R9999 Sheet steel door, W 300 mm, H 1600 mm 1
TZ101 2CPX010450R9999 Flange for 52 entries 3

CKDC1620 2CPX078321R9999 CombiLine S, DIN Components, Row distance 200 mm, 1 row, W 600 mm, H 200 mm 3
CACP6010 2CPX078351R9999 CombiLine S, Cover, plain, W 600 mm, H 100 mm 1
CHCC1511 2CPX078243R9999 CombiLine S, Device horizontal, W 600 mm, Tmax XT3, 1 device, 3/4 pole, fixed, lever 1
operation
18
CACP6020 2CPX078353R9999 CombiLine S, Cover, plain, W 600 mm, H 200 mm 2
CKDB2630 2CPX078406R9999 CombiLine S, DIN Components, Row distance 150 mm, 2 row, W 600 mm, H 300 mm 1
CACP3060 2CPX078348R9999 CombiLine S, Cover, plain, W 300 mm, H 600 mm 1
CACP3050 2CPX078347R9999 CombiLine S, Cover, plain, W 300 mm, H 500 mm 2
CASWP2 2CPX078454R9999 CombiLine S, Support, wiring duct, 2 pcs 5
CAHW6 2CPX078459R9999 CombiLine S, Mounting profile, for wiring system, W 600 mm 5
CASVP2 2CPX078452R9999 CombiLine S, Support, vertical universal, 2 pcs 2
CKBS2231 2CPX078372R9999 CombiLine S, Busbar, support, shaped busbars, holder scaled, W 300 mm, 1 support 4

BA0400 Busbar In = 400A 2
