18/349

—

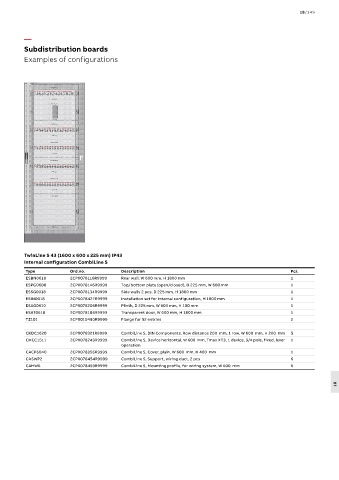

Subdistribution boards
Examples of configurations

1
+0 +01 ESBN0616
CKDD1620
+01.60
CHCC1511

+01.30
CKDD1620

+01.10
CKDD1620

+01.50
CKDD1620
+01.20
CKDD1620
+01.70
CACP6040

+01.40

TwinLine S 43 (1600 x 600 x 225 mm) IP43
Internal configuration CombiLine S
Type Ord.no. Description Pcs.
ESBN0618 2CPX078116R9999 Rear wall, W 600 mm, H 1800 mm 1
ESPG0600 2CPX078146R9999 Top/bottom plate (open/closed), D 225 mm, W 600 mm 1
ESSG0018 2CPX078134R9999 Side walls 2 pcs, D 225 mm, H 1800 mm 1
ESIN0018 2CPX078427R9999 Installation set for internal configuration, H 1800 mm 1
ESAG0610 2CPX078205R9999 Plinth, D 225 mm, W 600 mm, H 100 mm 1
ESAT0618 2CPX078184R9999 Transparent door, W 600 mm, H 1800 mm 1
TZ101 2CPX010450R9999 Flange for 52 entries 2
CKDC1620 2CPX078321R9999 CombiLine S, DIN Components, Row distance 200 mm, 1 row, W 600 mm, H 200 mm 5
CHCC1511 2CPX078243R9999 CombiLine S, Device horizontal, W 600 mm, Tmax XT3, 1 device, 3/4 pole, fixed, lever 1
operation
CACP6040 2CPX078356R9999 CombiLine S, Cover, plain, W 600 mm, H 400 mm 1
CASWP2 2CPX078454R9999 CombiLine S, Support, wiring duct, 2 pcs 6
CAHW6 2CPX078459R9999 CombiLine S, Mounting profile, for wiring system, W 600 mm 6

18
