Consumer units

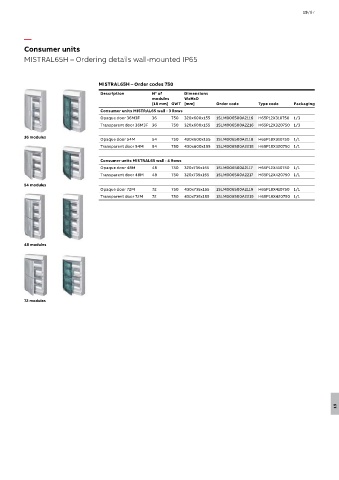

MISTRAL65H – Ordering details wall-mounted IP65
MISTRAL65H – Order codes 750
Description N° of Dimensions
modules WxHxD
[18 mm] GWT [mm] Order code Type code Packaging
Consumer units MISTRAL65 wall - 3 Rows
Opaque door 36M3F 36 750 320x600x155 1SLM006500A2116 H65P12X310750 1/3
Transparent door 36M3F 36 750 320x600x155 1SLM006500A2216 H65P12X320750 1/3
36 modules
Opaque door 54M 54 750 430x600x155 1SLM006500A2118 H65P18X310750 1/1
Transparent door 54M 54 750 430x600x155 1SLM006500A2218 H65P18X320750 1/1
Consumer units MISTRAL65 wall - 4 Rows
Opaque door 48M 48 750 320x735x155 1SLM006500A2117 H65P12X410750 1/1
Transparent door 48M 48 750 320x735x155 1SLM006500A2217 H65P12X420750 1/1
54 modules
Opaque door 72M 72 750 430x735x155 1SLM006500A2119 H65P18X410750 1/1
Transparent door 72M 72 750 430x735x155 1SLM006500A2219 H65P18X420750 1/1
48 modules
72 modules
