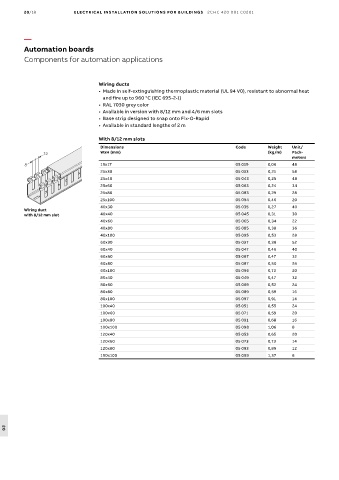

20/18 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Automation boards
Components for automation applications

Wiring ducts
• Made in self-extinguishing thermoplastic material (UL 94 V0), resistant to abnormal heat
and fire up to 960 °C (IEC 695-2-1)
• RAL 7030 grey color
• Available in version with 8/12 mm and 4/6 mm slots
• Base strip designed to snap onto Fix-O-Rapid
• Available in standard lengths of 2 m

With 8/12 mm slots
Dimensions Code Weight Unit/
WxH (mm) (kg/m) Pack-
meters
15x17 05 019 0,06 46
25x30 05 033 0,21 58
25x40 05 043 0,25 48
25x60 05 063 0,24 34
25x80 05 083 0,29 28
25x100 05 094 0,46 20
40x30 05 035 0,27 40
Wiring duct
with 8/12 mm slot 40x40 05 045 0,31 30
40x60 05 065 0,34 22
40x80 05 085 0,38 36
40x100 05 095 0,53 28
60x30 05 037 0,38 52
60x40 05 047 0,46 40
60x60 05 067 0,47 32
60x80 05 087 0,50 24
60x100 05 096 0,73 20
80x40 05 049 0,47 32
80x60 05 069 0,52 24
80x80 05 089 0,59 16
80x100 05 097 0,91 14
100x40 05 051 0,55 24
100x60 05 071 0,59 20
100x80 05 091 0,68 16
100x100 05 098 1,06 8
120x40 05 053 0,65 20
120x60 05 073 0,73 14
120x80 05 093 0,89 12
150x100 05 099 1,37 8
