Automation boards

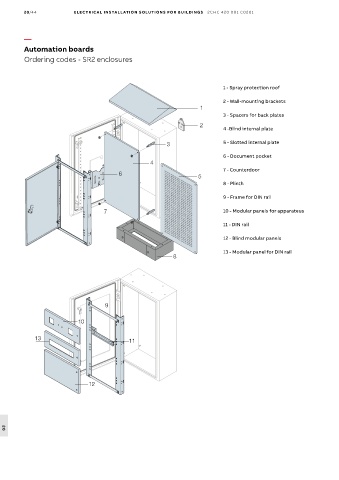

Ordering codes - SR2 enclosures

1 - Spray protection roof

2 - Wall-mounting brackets
1
3 - Spacers for back plates
2
4 -Blind internal plate

3 5 - Slotted internal plate

6 - Document pocket
4
7 - Counterdoor
6 5
8 - Plinth

9 - Frame for DIN rail

7 10 - Modular panels for apparateus

11 - DIN rail

12 - Blind modular panels

13 - Modular panel for DIN rail
8

9

10

13
11

12
