2/26 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

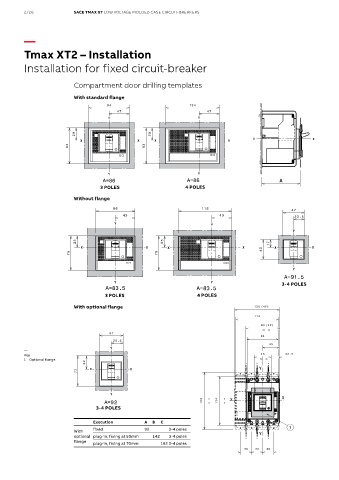

Tmax XT2 – Installation

Installation for fixed circuit-breaker

Compartment door drilling templates

With standard flange

3 POLES 4 POLES

Without flange

3-4 POLES
3 POLES 4 POLES

With optional flange

—
Key
1 Optional flange

3-4 POLES

Execution A B C
fixed 92 3-4 poles
With
optional plug-in, fixing at 50mm 142 3-4 poles
flange
plug-in, fixing at 70mm 162 3-4 poles
