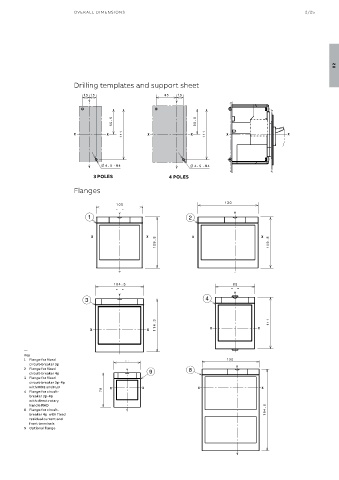

OVER ALL DIMENSIONS 2/25

02

Drilling templates and support sheet

3 POLES 4 POLES

Flanges

—
Key
1 Flange for fixed
circuit-breaker 3p
2 Flange for fixed
circuit-breaker 4p
3 Flange for fixed
circuit-breaker 3p-4p
with MOE and FLD
4 Flange for circuit-
breaker 3p-4p
with direct rotary
handle RHD
8 Flange for circuit-
breaker 4p with fixed
residual current and
front terminals
9 Optional flange
