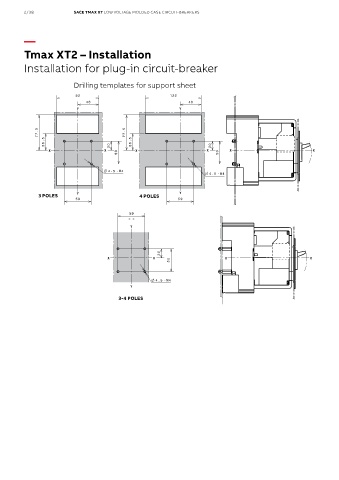

2/38             SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

          Tmax XT2 – Installation


          Installation for plug-in circuit-breaker


                           Drilling templates for support sheet






















               3 POLES                            4 POLES





















                                           3-4 POLES
