2/48 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

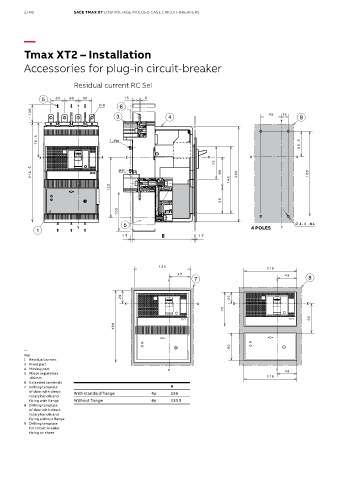

Tmax XT2 – Installation

Accessories for plug-in circuit-breaker

Residual current RC Sel

4 POLES

—
Key
1 Residual current
3 Fixed part
4 Moving part
5 Phase separators
100mm
6 Extended terminals
7 Drilling template A
of door with direct With standard flange 4p 136
rotary handle and
fixing with flange Without flange 4p 133.5
8 Drilling template
of door with direct
rotary handle and
fixing without flange
9 Drilling template
for circuit-breaker
fixing on sheet
