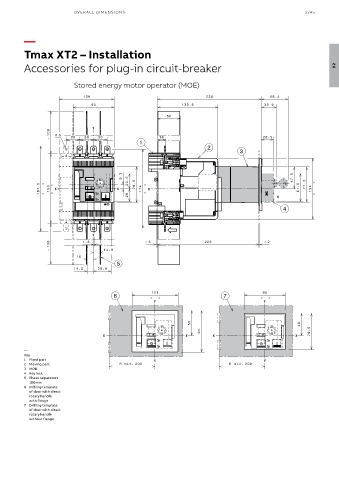

OVER ALL DIMENSIONS 2/45

—

Tmax XT2 – Installation

Accessories for plug-in circuit-breaker 02

Stored energy motor operator (MOE)

—
Key
1 Fixed part
2 Moving part
3 MOE
4 Key lock
5 Phase separators
100mm
6 Drilling template
of door with direct
rotary handle
with flange
7 Drilling template
of door with direct
rotary handle
without flange
