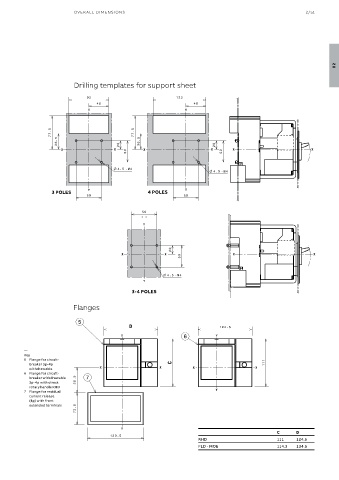

OVER ALL DIMENSIONS 2/51
02
Drilling templates for support sheet
3 POLES 4 POLES
3-4 POLES
Flanges
—
Key
5 Flange for circuit-
breaker 3p-4p
withdrawable
6 Flange for circuit-
breaker withdrawable
3p-4p with direct
rotary handle RHD
7 Flange for residual
current release
(4p) with front
extended terminals
C D
RHD 111 124.5
FLD - MOE 114.3 134.5
