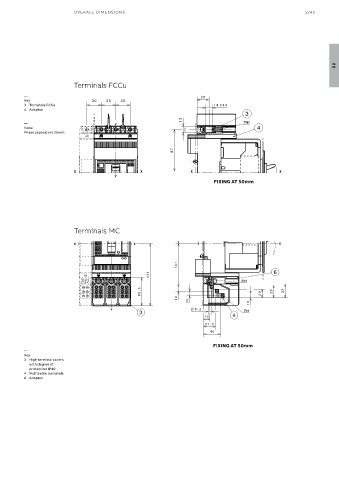

OVER ALL DIMENSIONS 2/43

02

Terminals FCCu
—
Key
3 Terminals FCCu
4 Adaptor
—
Note:
Phase separators 25mm

FIXING AT 50mm

Terminals MC

FIXING AT 50mm
—
Key
3 High terminal covers
with degree of
protection IP40
4 Multicable terminals
6 Adaptor
