2/50 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS
—

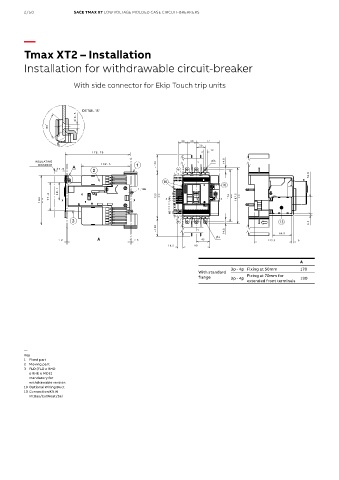

Tmax XT2 – Installation
Installation for withdrawable circuit-breaker
With side connector for Ekip Touch trip units
DETAIL "A"
INSULATING
DISTANCE
A
3p - 4p Fixing at 50mm 170
With standard
flange 3p - 4p Fixing at 70mm for 190
extended front terminals
—
Key
1 Fixed part
2 Moving part
3 FLD (FLD o RHD
o RHE o MOE)
mandatory for
withdrawable version
10 Optional Wiring Duct
13 Connection Kit W
IntBus/ExtNeut/Sel
