2/52 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

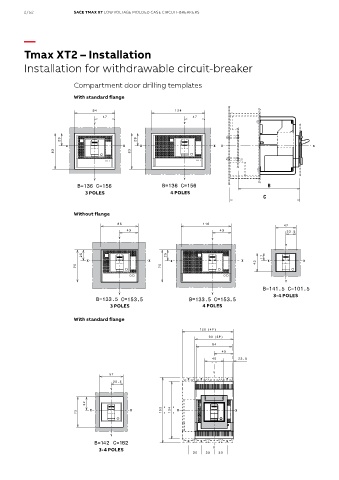

Tmax XT2 – Installation

Installation for withdrawable circuit-breaker

Compartment door drilling templates

With standard flange

3 POLES 4 POLES

Without flange

3-4 POLES
3 POLES 4 POLES

With standard flange

3-4 POLES
