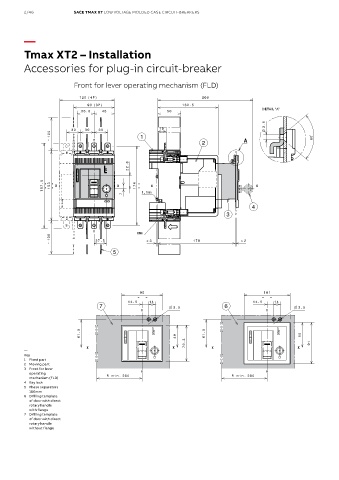

2/46 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

Tmax XT2 – Installation

Accessories for plug-in circuit-breaker

Front for lever operating mechanism (FLD)

DETAIL "A"

—
Key
1 Fixed part
2 Moving part
3 Front for lever
operating
mechanism (FLD)
4 Key lock
5 Phase separators
100mm
6 Drilling template
of door with direct
rotary handle
with flange
7 Drilling template
of door with direct
rotary handle
without flange
