2/54 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

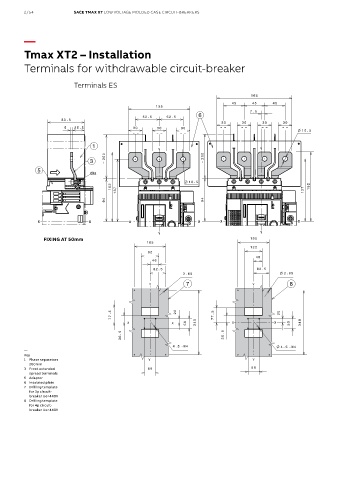

Tmax XT2 – Installation

Terminals for withdrawable circuit-breaker

Terminals ES

FIXING AT 50mm

—
Key
1 Phase separators
200mm
3 Front extended
spread terminals
5 Adaptor
6 Insulated plate
7 Drilling template
for 3p circuit-
breaker Ue>440V
8 Drilling template
for 4p circuit-
breaker Ue>440V
