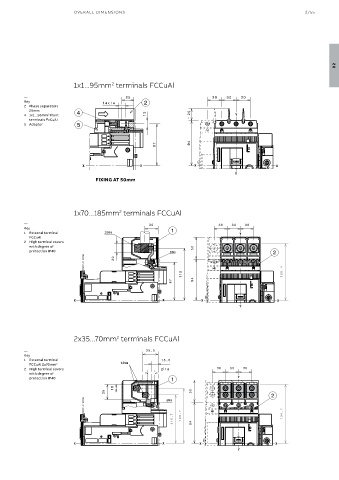

OVER ALL DIMENSIONS 2/55
02
1x1...95mm terminals FCCuAl
2
—
Key
2 Phase separators
25mm
4 1x1...95mm 2 front
terminals FcCuAl
5 Adaptor
FIXING AT 50mm
1x70...185mm terminals FCCuAl
2
—
Key
1 External terminal
FCCuAl
2 High terminal covers
with degree of
protection IP40
2x35...70mm terminals FCCuAl
2
—
Key
1 External terminal
FCCuAl 2x70mm 2
2 High terminal covers
with degree of
protection IP40
