2/56             SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

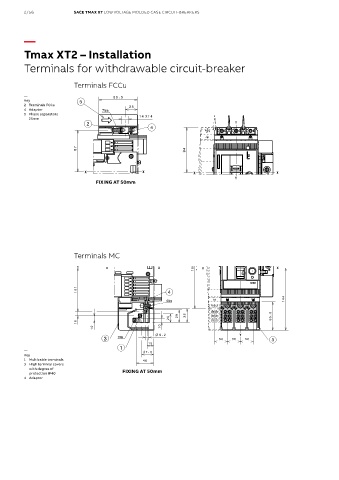

          Tmax XT2 – Installation


          Terminals for withdrawable circuit-breaker


                           Terminals FCCu
          —
          Key
          2  Terminals FCCu
          4  Adaptor
          5  Phase separators
           25mm











                                   FIXING AT 50mm














                           Terminals MC



















          —
          Key
          1  Multicable terminals
          3  High terminal covers
           with degree of                   FIXING AT 50mm
           protection IP40
          4  Adaptor
