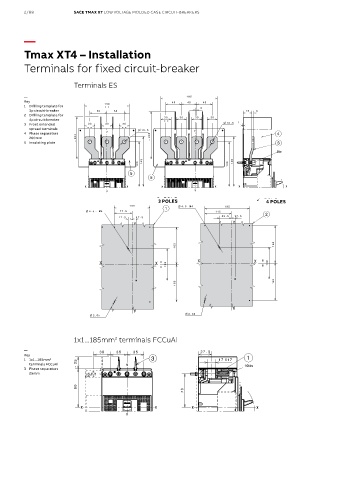

Tmax XT4 – Installation

Terminals for fixed circuit-breaker

Terminals ES

—
Key
1 Drilling template for
3p circuit-breaker
2 Drilling template for
4p circuit-breaker
3 Front extended
spread terminals
4 Phase separators
200mm
5 Insulating plate

3 POLES 4 POLES

1x1...185mm terminals FCCuAl
2
—
Key
1 1x1...185mm 2
terminals FCCuAl
3 Phase separators
25mm
