P. 170

2/90             SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

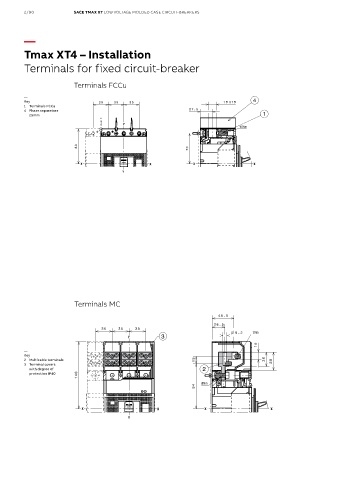

          Tmax XT4 – Installation


          Terminals for fixed circuit-breaker


                           Terminals FCCu

          —
          Key
          1  Terminals FCCu
          4  Phase separators
           25mm







































                           Terminals MC








          —
          Key
          2  Multicable terminals
          3  Terminal covers
           with degree of
           protection IP40
